Custom High-Fidelity Power Supplies - 36kW to 1.32 MW

Power Supply brochure (requires Adobe Reader)

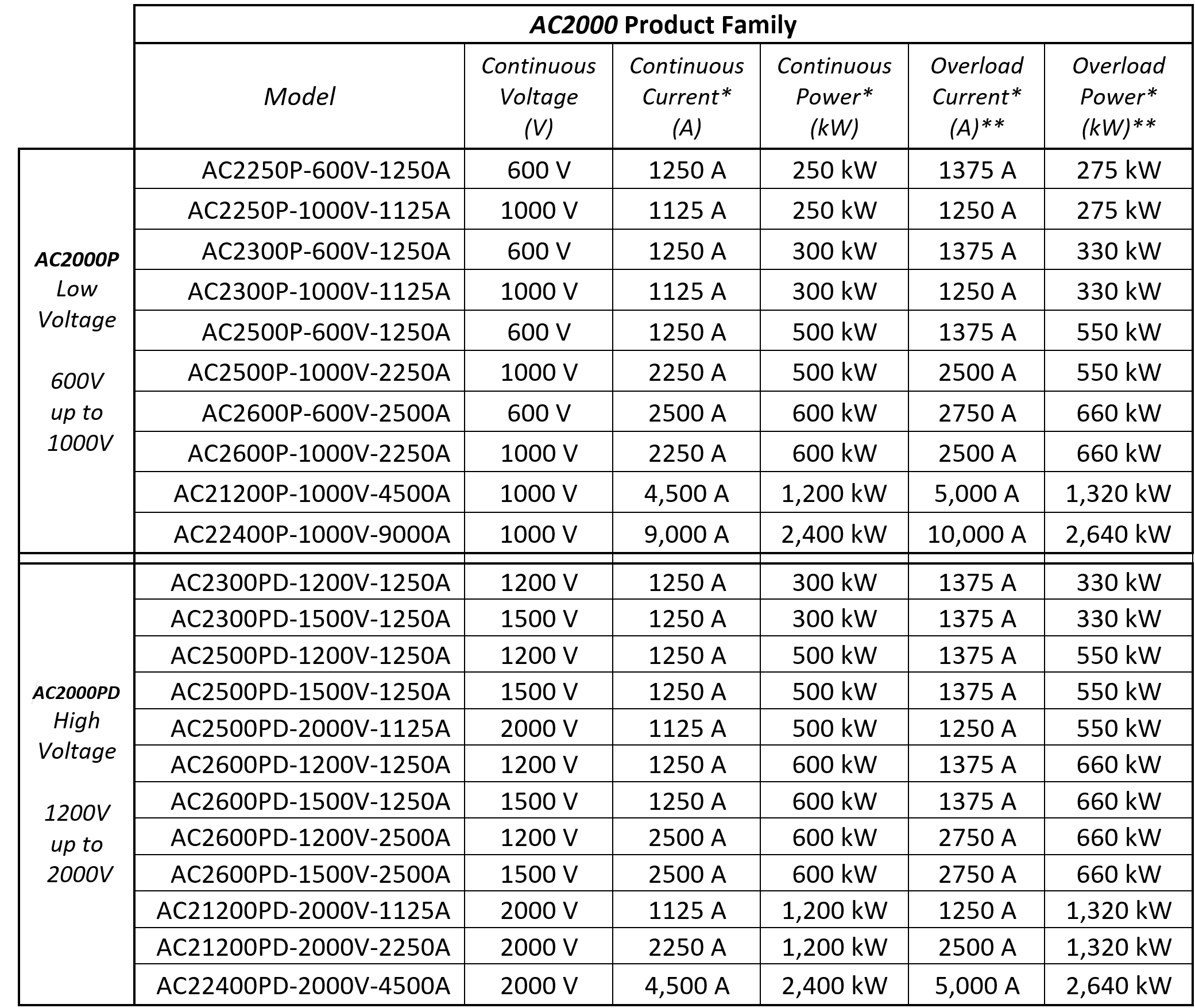

Anderson Electric Controls, Inc. builds custom high-performance power supplies that were designed for the automotive and photovoltaic industries. Our power supplies are custom built so we can accomodate any power level to meet your needs. The current product lineup consists of power levels from 36kW up to 1.32 MW, and output voltages up to 900VDC

36kW     (AC2036P)

200kW   (AC2200P)

250kW   (AC2250P)

500kW   (AC2500P)

660kW   (AC2660P)

1320kW (AC21320P)		 Touchscreen for local control
Features
  • Two Quadrant, Regenerative to Utility Line (IEEE 519)
  • Output Voltage Continuously Variable
  • Constant Power from nominal Volts DC to Maximum VDC .
  • AC Input 415/480VAC, 3 Phase 50/60 Hz.
  • Automatic Transition from Source to Sink.
  • Air cooled or liquid cooled designs
  • Portable units available
  • Low voltage units have internal isolation transformer, high voltage units require external isolation transformer
  • Touchscreen for local control
  • Bumpless Transfer Between Automatic and Manual Control
  • Profile Control via FiberOptic, USB or Ethernet (contact AEC for details)
  • Digital Data Bus, RS-422, USB, Ethernet or CANbus
  • Remote Voltage Sense Capability
  • Overvoltage Protection
  • Internal Resistance Simulation
  • Output isolation contactors included in all designs
  • Built in Shunt Regulator for Power Outage Protection.


    Specifications
  • Transition Time: < 110 µs Source to Sink.
  • Step Response Time: < 10 msec for 10/90% or 90/10% step load at rated current.
  • Voltage Sag: < 3.0% during step response.
  • Transient Regulation: +/- 3.0% for all line and load variations.
  • Steady State Regulation: +/- 0.5%.
  • Voltage Ripple: 2.0% peak-to-peak in voltage range.
    		•

    36-250kW Power Supply Frame



    Inside view of a 200 kW 600VDC power supply.

  • Upper left corner - 3U DSP controller

  • Upper middle - Gatedrive interface

  • Middle left side - Shunt IGBT

  • Middle left - chopper IGBT bridge

  • Middle right - PWM converter IGBT bridge.

  • The shunt is an option for power ride through in case of an incoming power failure during regeneration.

  • The controller and gate circuits are capable of driving 1700, 1200, 600 and 250 volt IGBTs

  • The power factor is unity and the total harmonic current distortion is less than 5% on the mains input

  • The power supply can be controlled remotely over Ethernet using  ACSYSoft software

  • Develop your own remote application for operation and/or data aquisition using AEC's .NET based interface driver

  • Link each power supply to an AEC dynamometer test stand using ACSYSdyne software
